Embedded SPA via iFrame

Overview

For quick integration without backend development, you can embed our real-time tracking interface directly into your web portal using an iFrame. This provides a complete tracking solution with interactive maps, device lists, real-time updates, trip visualization, and advanced features like speed monitoring.


SPA URL

https://portal-apis.telematicssdk.com/embedded-map

URL Parameters

ParameterRequiredDescription
instanceIdYesYour instance UUID for data filtering
jwtYesJWT token for authentication
devicetokenNoSpecific device token for single-device mode
unitsNoUnit system: 'metric' (default) or 'imperial' for display
timezoneNoTimezone for timestamps (default: 'UTC')
date_formatNoDate format: 'unix' (default), 'iso', or 'localized'
maxspeedNoSpeed limit for monitoring (e.g., '80kmh', '50mph')
lat/latitudeNoLatitude coordinate (-90 to 90) for map centering
lng/lon/longitudeNoLongitude coordinate (-180 to 180) for map centering
zoomNoZoom level (3 to 18) for initial map view

Map Centering Behavior

The embedded SPA provides intelligent map centering based on the provided URL parameters:

1. Custom Coordinates (lat/lng provided)

  • Centers map on the specified location with optional zoom level
  • Shows all devices in the area around the specified coordinates
  • Perfect for regional monitoring or area-specific tracking

2. Single Device Mode (devicetoken provided)

  • Automatically focuses on the specified device when data arrives
  • Uses optimal zoom level (15) for device viewing
  • Ideal for individual asset tracking

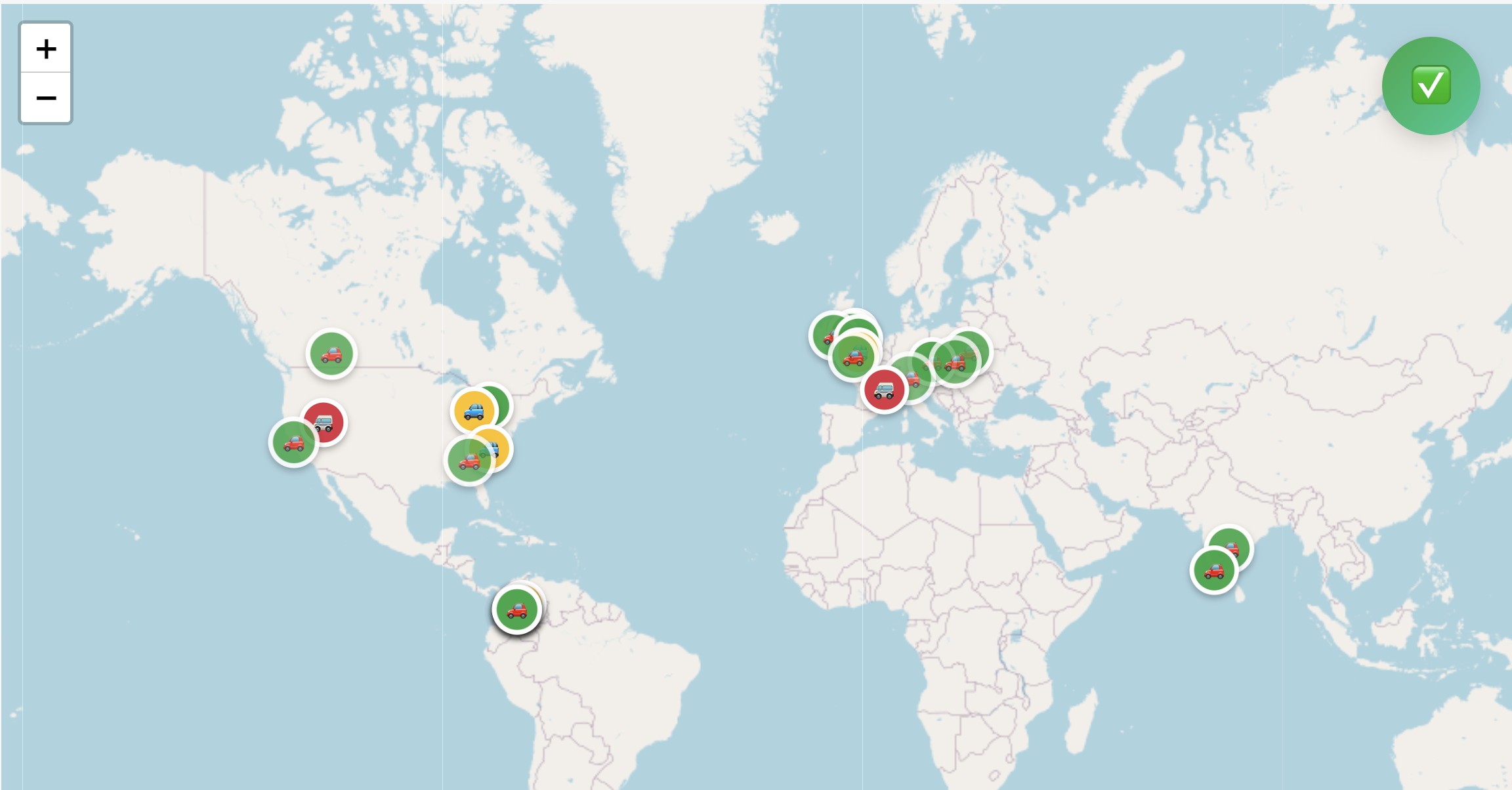

3. Multi-Device Mode (no coordinates, no devicetoken)

  • Maintains world view showing global device distribution
  • Does NOT auto-center on the first device
  • Perfect for fleet overview and global monitoring

4. Combined Mode (coordinates + devicetoken)

  • Starts at the specified location
  • Auto-focuses on the device when data becomes available
  • Useful for monitoring specific devices in known regions

Coordinate Parameters

Supported Parameter Names:

  • Latitude: lat, latitude
  • Longitude: lng, lon, longitude
  • Zoom: zoom

Parameter Validation:

  • Latitude: Must be between -90 and 90 (decimal degrees)
  • Longitude: Must be between -180 and 180 (decimal degrees)
  • Zoom: Must be between 3 and 18 (integer)
  • Invalid values: Ignored and fallback to default behavior

Example Coordinate Formats:

# Standard format
?lat=40.7128&lng=-74.0060&zoom=10

# Alternative longitude format
?lat=51.5074&lon=-0.1278&zoom=12

# Full parameter names
?latitude=34.0522&longitude=-118.2437&zoom=8

# Mixed formats (all valid)
?lat=48.8566&longitude=2.3522&zoom=11

SPA Features

The embedded SPA provides a comprehensive tracking interface with:

Core Features:

  • Interactive Map: OpenStreetMap with device markers and real-time updates
  • Device Status System: 3-tier status (Active, Inactive, Offline) with color-coded icons
  • Real-time Updates: WebSocket connection for live position streaming
  • Trip Visualization: Show trip paths with waypoints and route details
  • Device Management: Device list with detailed information and controls

Advanced Features:

  • Speed Monitoring: Configurable speed limits with visual alerts
  • Unit Conversion: Client-side conversion between metric/imperial units
  • Status Modal: Comprehensive dashboard with statistics and controls
  • Responsive Design: Mobile-friendly interface with touch controls
  • Copy Functions: Copy device tokens, coordinates, and timestamps

Device Status System:

  • Active (Green): Last message within 1 minute
  • Inactive (Yellow): Last message 1-6 minutes ago
  • Offline (Red): Last message over 6 minutes ago
  • Auto-cleanup: Devices offline for 10+ minutes are removed from map

Example Integrations

<!-- Basic multi-device tracking (world view) -->
<iframe src="https://portal-apis.telematicssdk.com/embedded-map?instanceId=YOUR_INSTANCE&jwt=YOUR_JWT"></iframe>

<!-- Single device auto-focus -->
<iframe src="https://portal-apis.telematicssdk.com/embedded-map?instanceId=YOUR_INSTANCE&devicetoken=YOUR_DEVICE&jwt=YOUR_JWT"></iframe>

<!-- Regional monitoring - New York City -->
<iframe src="https://portal-apis.telematicssdk.com/embedded-map?instanceId=YOUR_INSTANCE&jwt=YOUR_JWT&lat=40.7128&lng=-74.0060&zoom=10"></iframe>

<!-- European fleet monitoring - London -->
<iframe src="https://portal-apis.telematicssdk.com/embedded-map?instanceId=YOUR_INSTANCE&jwt=YOUR_JWT&lat=51.5074&lng=-0.1278&zoom=8&units=metric"></iframe>

<!-- Single device with imperial units and custom location -->
<iframe src="https://portal-apis.telematicssdk.com/embedded-map?instanceId=YOUR_INSTANCE&devicetoken=YOUR_DEVICE&jwt=YOUR_JWT&units=imperial&lat=34.0522&lng=-118.2437&zoom=12"></iframe>

<!-- Speed monitoring with 80 km/h limit -->
<iframe src="https://portal-apis.telematicssdk.com/embedded-map?instanceId=YOUR_INSTANCE&jwt=YOUR_JWT&maxspeed=80kmh"></iframe>

<!-- Complete configuration with all options -->
<iframe src="https://portal-apis.telematicssdk.com/embedded-map?instanceId=YOUR_INSTANCE&jwt=YOUR_JWT&units=imperial&date_format=iso&timezone=America/New_York&maxspeed=55mph&lat=40.7128&lng=-74.0060&zoom=10"></iframe>

<!-- Debug mode for troubleshooting -->
<iframe src="https://portal-apis.telematicssdk.com/embedded-map?instanceId=YOUR_INSTANCE&jwt=YOUR_JWT&debug=true"></iframe>

Speed Monitoring

The SPA supports configurable speed monitoring with visual alerts:

URL Parameter Format:

  • maxspeed=80 (defaults to km/h)
  • maxspeed=80kmh (explicit km/h)
  • maxspeed=50mph (miles per hour)

Visual Indicators:

  • Red Border: Device icons show red border when speeding
  • Red Waypoints: Trip path points are colored red for speeding locations
  • Speed Alerts: Popup warnings show speed violations
  • Statistics: Speed monitoring stats in status modal

Interactive Configuration:

  • Set speed limits directly in the status modal
  • Enable/disable monitoring without URL changes
  • Real-time updates of speeding device counts

Data Handling

Important Notes:

  • Raw Sensor Data: The SPA receives speed in m/s and distance in meters
  • Client-side Conversion: All unit conversions happen in the browser
  • Real-time Processing: WebSocket data is processed immediately for live updates
  • Fallback Strategy: Uses REST API for initial data, WebSocket for real-time updates
  • Caching: Intelligent caching of device positions and trip data
  • Map Centering: URL parameters are parsed and validated on page load
  • Auto-Focus: Single device mode automatically centers on device when data arrives
  • World View: Multi-device mode maintains global overview without auto-centering

Basic iFrame Integration

<!DOCTYPE html>
<html>
<head>
    <title>Fleet Tracking Portal</title>
    <style>
        .tracker-container {
            width: 100%;
            height: 600px;
            border: 1px solid #ddd;
            border-radius: 8px;
            overflow: hidden;
        }

        .tracker-iframe {
            width: 100%;
            height: 100%;
            border: none;
        }
    </style>
</head>
<body>
    <div class="tracker-container">
        <iframe
            class="tracker-iframe"
            src="https://portal-apis.telematicssdk.com/embedded-map?instanceId=YOUR_INSTANCE_ID&jwt=YOUR_JWT_TOKEN"
            allow="geolocation"
            sandbox="allow-scripts allow-same-origin allow-popups allow-forms">
        </iframe>
    </div>
</body>
</html>
